Nota comercial: Precios y disponibilidad sujetos a cotización formal según el tipo de cambio del día (USD/MXN) y el volumen o tonelaje requerido.

Especificaciones Técnicas y Tabla de Pesos Teóricos (Placa en Hoja)

ESPESOR (pulg – mm)	Kg x m²	3’x6′ (0.91×1.83m)	3’x8′ (0.91×2.44m)	3’x10′ (0.91×3.05m)	4’x8′ (1.22×2.44m)	4’x10′ (1.22×3.05m)	5’x10′ (1.52×3.05m)	5’x20′ (1.52×6.10m)	6’x20′ (1.83×6.10m)	6’x40′ (1.83×12.19m)	8’x20′ (2.44×6.10m)	8’x40′ (2.44×12.19m)	10’x40′ (3.05×12.19m)
3/16″ — 4.8	37.35	–	84	105	112	140	176	351	421	–	562	1,123	–
1/4″ — 6.4	49.79	–	112	140	150	187	234	468	562	–	749	1,498	–
5/16″ — 7.9	62.24	–	140	176	187	234	293	585	702	–	936	–	–
3/8″ — 9.5	74.69	–	168	211	225	281	351	702	842	1,685	1,123	2,246	2,808
7/16″ — 11.1	87.14	–	–	246	–	–	–	–	983	–	–	–	–
1/2″ — 12.7	99.59	–	225	281	300	374	468	936	1,123	2,246	1,498	2,995	3,744
9/16″ — 14.3	112.04	–	–	316	–	–	–	–	1,264	–	–	–	–
5/8″ — 15.9	124.49	211	281	351	374	468	585	1,170	1,404	2,808	1,872	3,744	4,680
3/4″ — 19.1	149.38	253	337	421	449	562	702	1,404	1,685	3,370	2,246	4,493	5,616
7/8″ — 22.2	174.38	–	–	491	–	–	–	–	1,966	–	2,621	–	–
1″ — 25.4	199.18	337	449	562	599	749	936	1,872	2,246	4,493	2,995	5,990	7,488
1 1/8″ — 28.6	224.07	–	–	632	–	–	–	–	2,527	–	3,370	6,739	–
1 1/4″ — 31.8	251.88	–	562	702	749	936	1,170	2,340	2,808	5,616	3,744	7,488	–
1 3/8″ — 34.9	277.06	–	–	–	–	–	–	–	–	–	4,118	–	–
1 1/2″ — 38.1	302.25	–	674	842	899	1,123	1,404	2,808	3,370	–	4,493	8,986	–
1 5/8″ — 41.3	327.44	–	–	–	–	–	–	–	–	–	4,867	–	–
1 3/4″ — 44.5	348.56	–	–	983	–	–	1,872	–	3,931	–	5,242	–	–
2″ — 50.8	398.36	–	899	1,123	1,198	1,498	–	3,744	4,493	–	5,990	11,981	–
2 1/4″ — 57.2	448.15	–	–	1,264	–	1,685	–	–	5,054	–	6,739	–	–
2 1/2″ — 63.5	497.95	–	–	1,404	–	1,872	–	–	5,616	–	7,488	–	–
2 3/4″ — 69.8	554.12	–	–	–	–	–	–	–	–	–	8,237	–	–
3″ — 76.2	597.54	–	–	1,685	–	2,246	–	–	6,739	–	8,986	–	–
3 1/2″ — 88.9	697.13	–	–	–	–	–	–	6,552	7,935	–	10,483	–	–
4″ — 101.6	796.72	–	–	–	–	–	–	7,488	9,069	–	11,981	–	–
4 1/2″ — 114.3	906.75	–	–	–	–	–	–	–	–	–	13,478	–	–

Acero, Estructura e Industrial

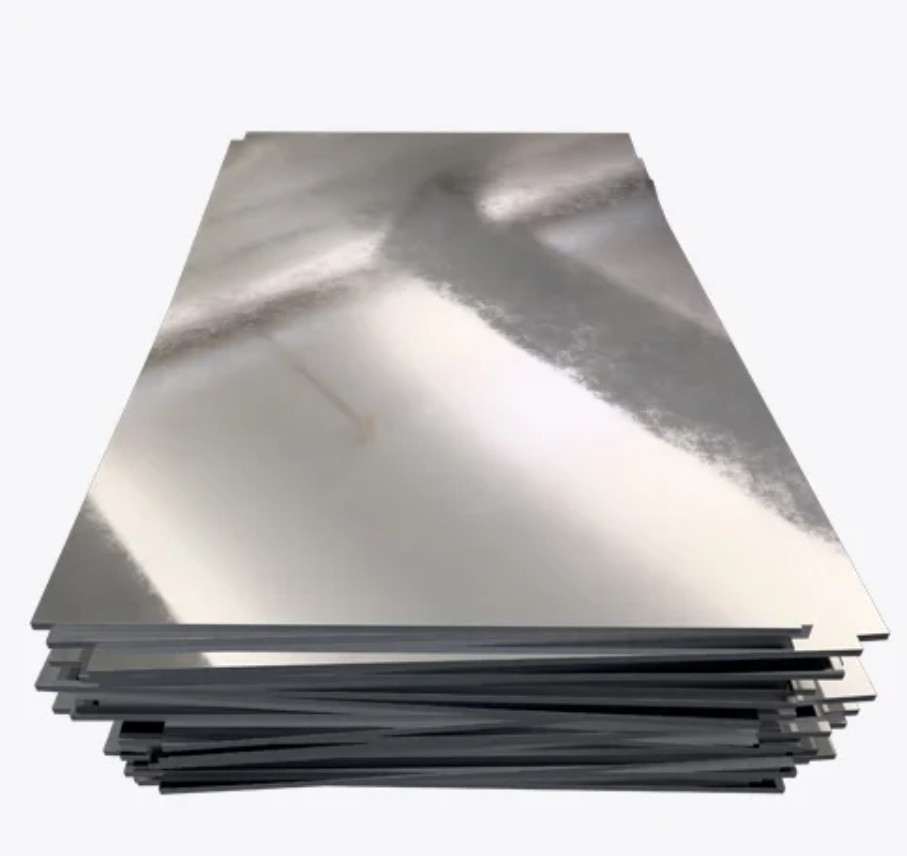

Placa de Acero en Hoja / Placa de Estructura

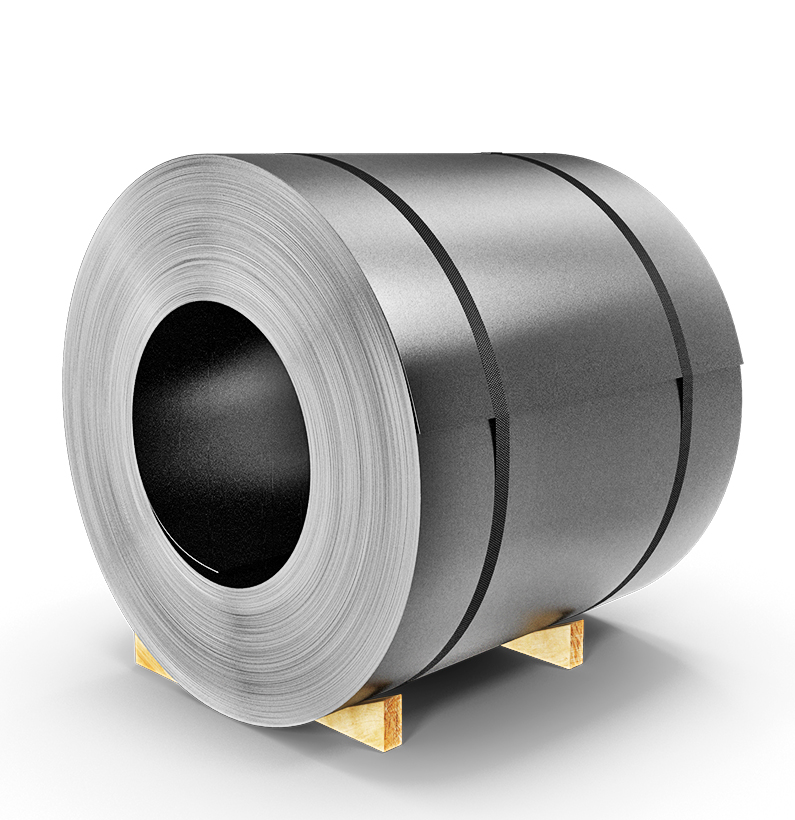

Placa de Acero en Rollo (Grado Comercial 36A)
